| VOF 122 | | |

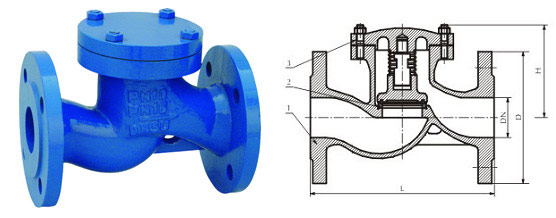

| DIN Cast Iron Lifting Check Valve |
|
Components
|
1 |
Body |
Cast iron/ductile iron |
|
2 |
Bonnet |
stainless steel |
|
3 |
Disc |
Cast iron/ductile iron |
|
4 |
BONNET |
Cast iron/ductile iron |
Application
|
Face to face is according to DIN3202-F1 |
|
Flange drilled is according to DIN2532/2533 |
Test
|
Working pressure |
PN10 |
PN16 |
|
Shell pressure |
15bars |
24bars |
|
Seat pressure |
11bars |
17.6bars |
Dimensions(Unit:mm)
|
Size(Inch) |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
L |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
|
H |
95 |
100 |
115 |
135 |
145 |
160 |
180 |
270 |
320 |
350 |
|
Working Pressure:PN10 |
|
Dia.of flange |
150 |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
395 |
445 |
|
Nos.of hole |
4 |
4 |
4 |
`8 |
8 |
8 |
8 |
8 |
12 |
12 |
|
Dia.of hole |
18 |
18 |
18 |
18 |
18 |
18 |
23 |
23 |
23 |
23 |
|
P.C.D |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
350 |
400 |
|
K |
88 |
102 |
122 |
138 |
158 |
188 |
212 |
268 |
320 |
370 |
|
Working Pressure:PN16 |
|
Dia.of flange |
150 |
165 |
185 |
200 |
220 |
250 |
285 |
340 |
405 |
460 |
|
Nos.of hole |
4 |
4 |
4 |
8 |
8 |
8 |
8 |
12 |
12 |
12 |
|
Dia.of hole |
18 |
18 |
18 |
18 |
18 |
18 |
22 |
22 |
26 |
26 |
|
P.C.D |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
770 |
|
K |
88 |
102 |
122 |
138 |
158 |
188 |
212 |
268 |
320 |
378 |
| | |
| | |
|
